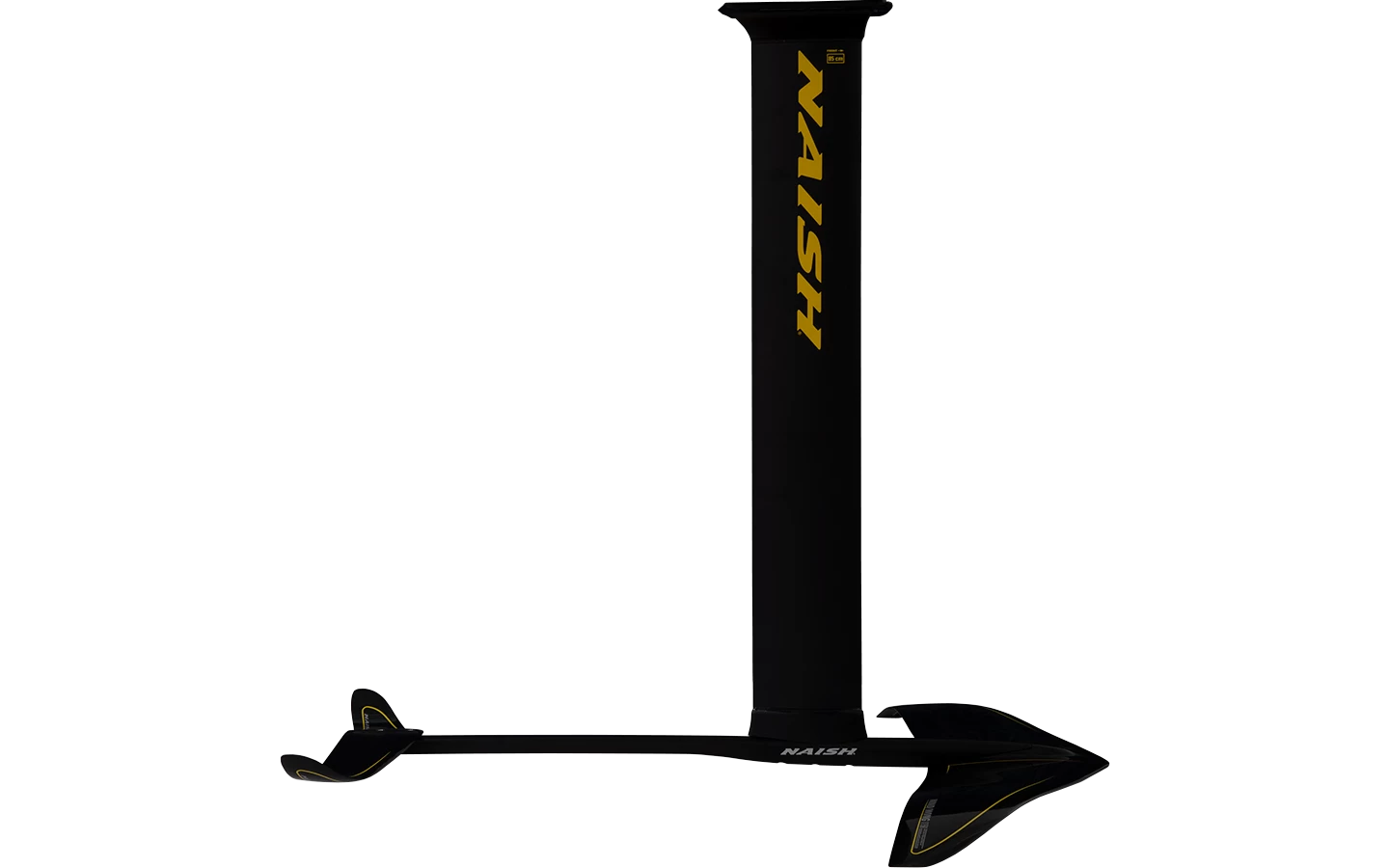

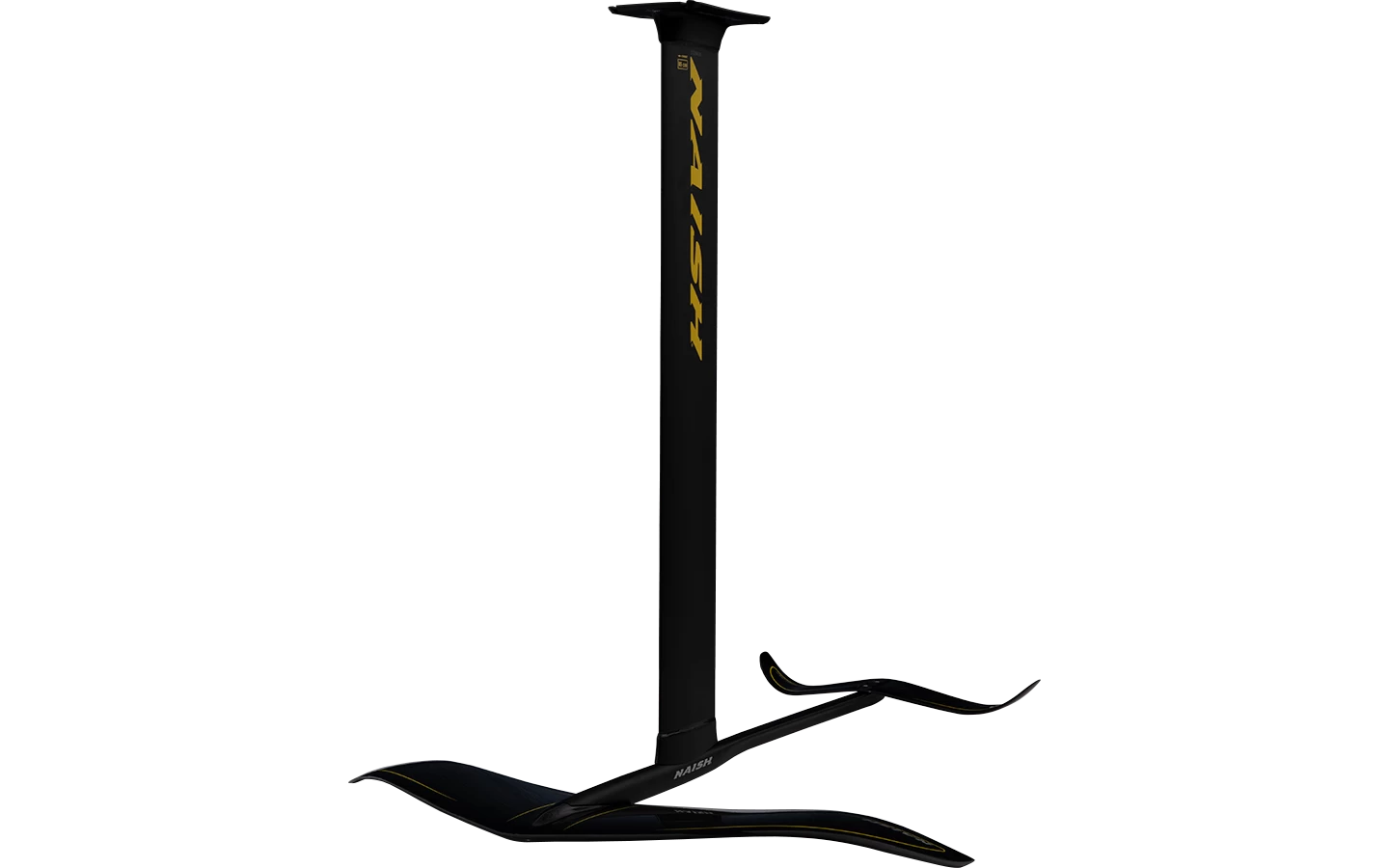

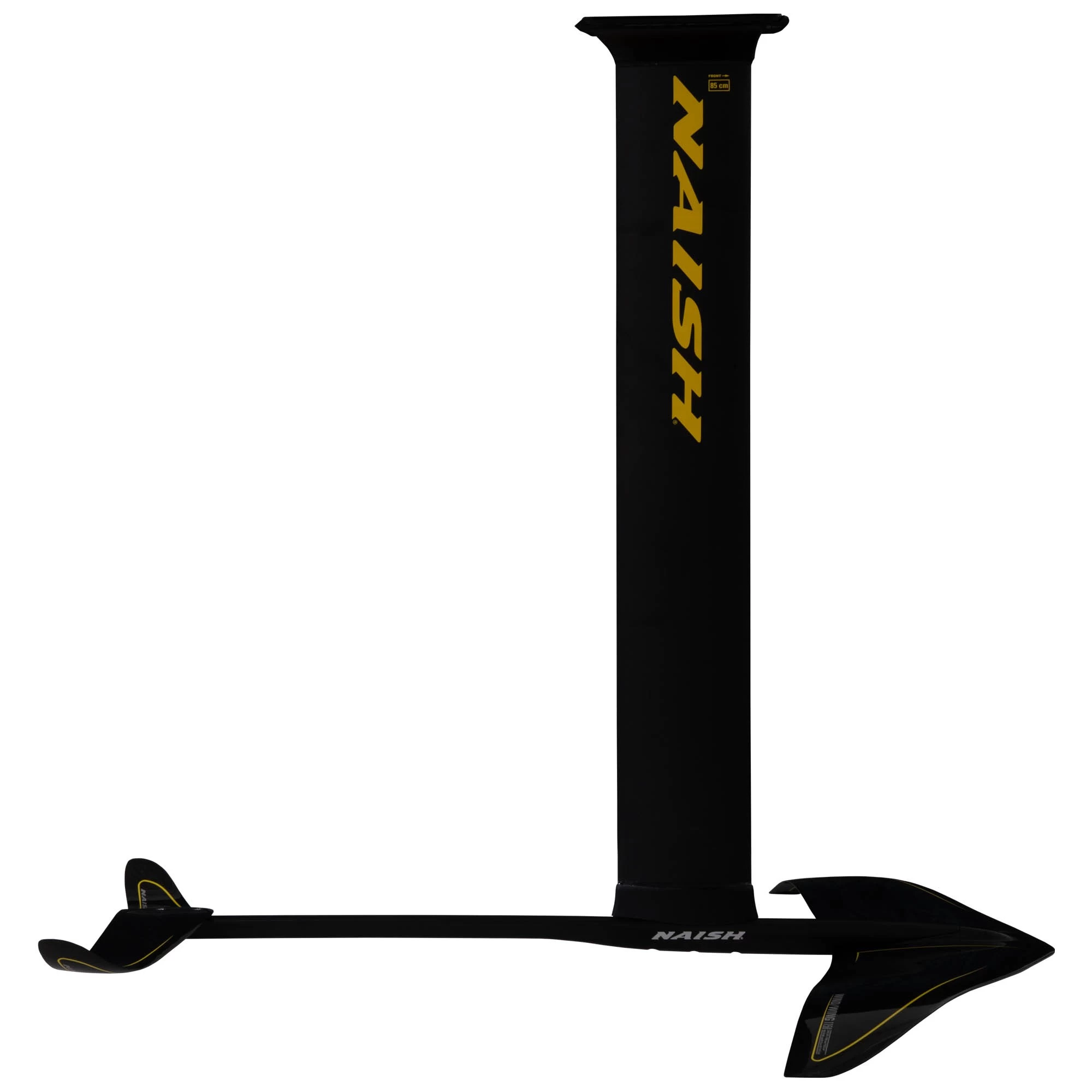

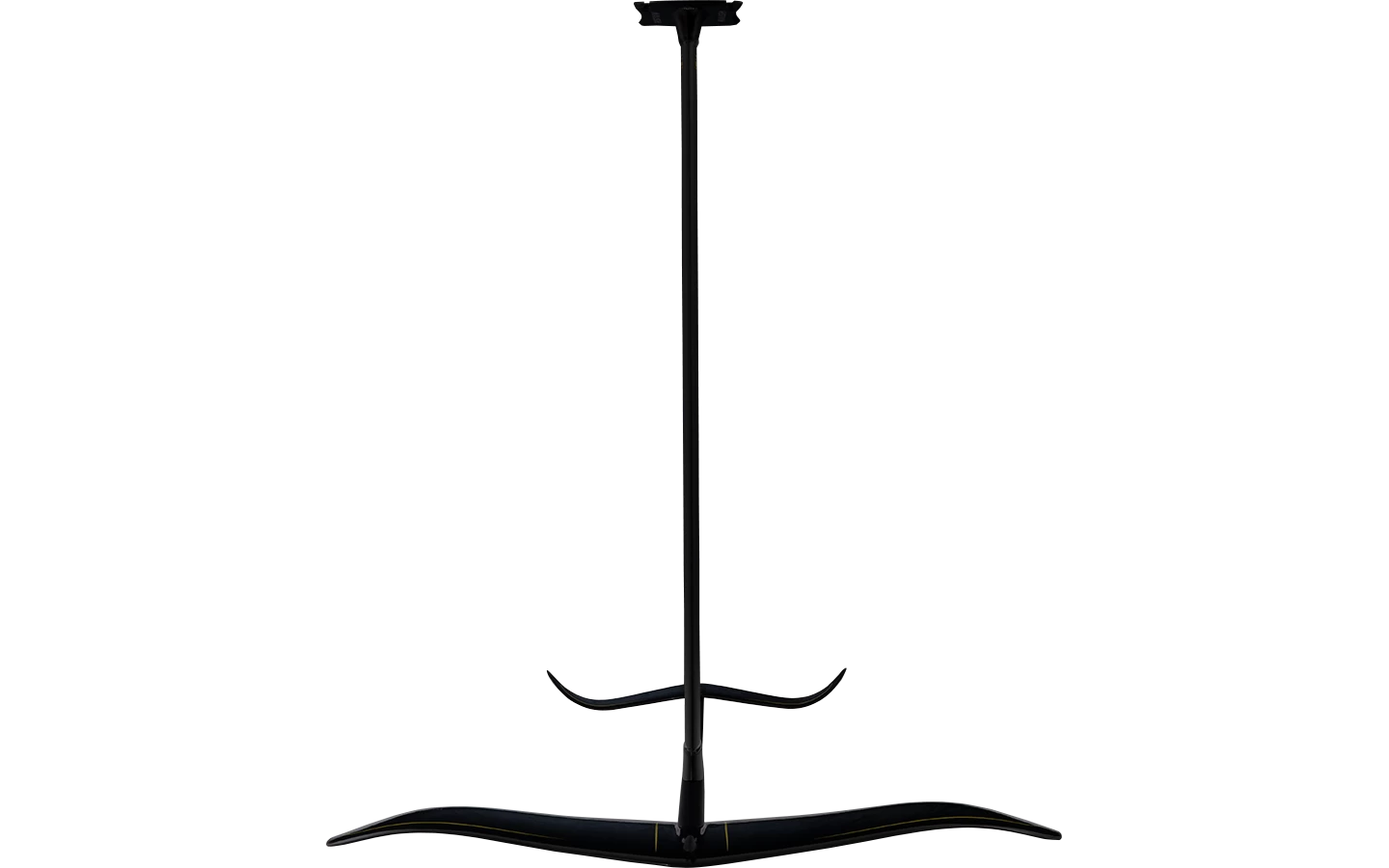

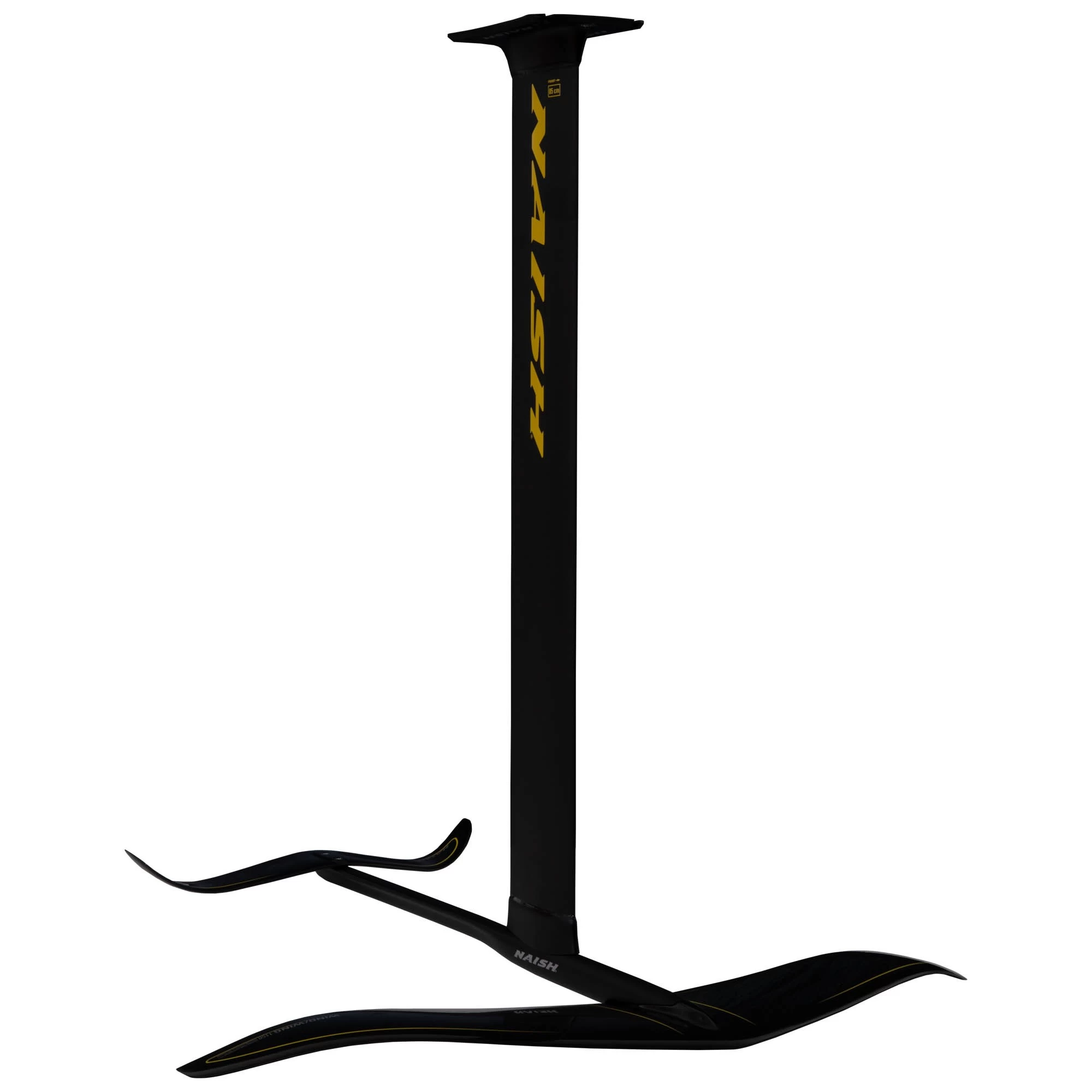

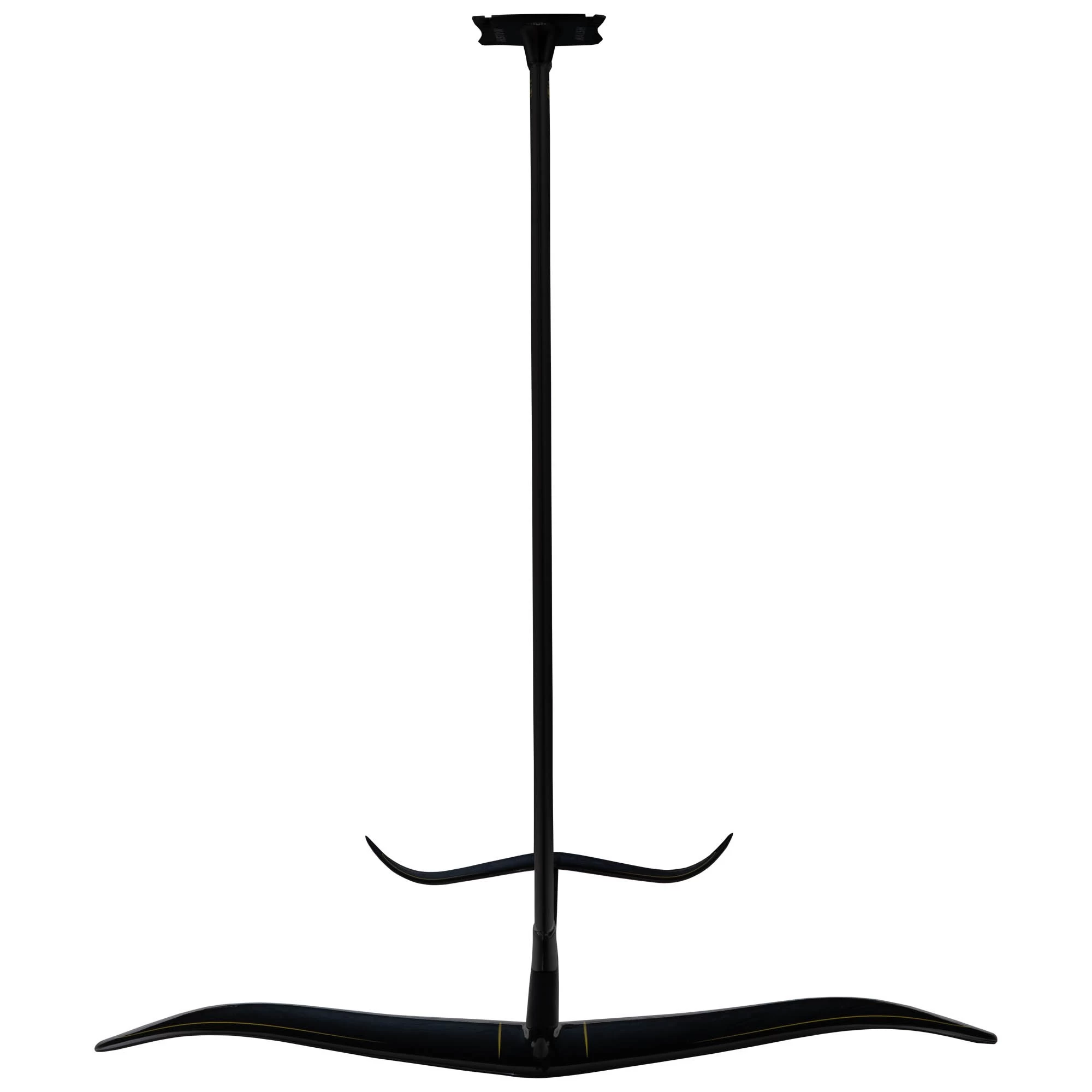

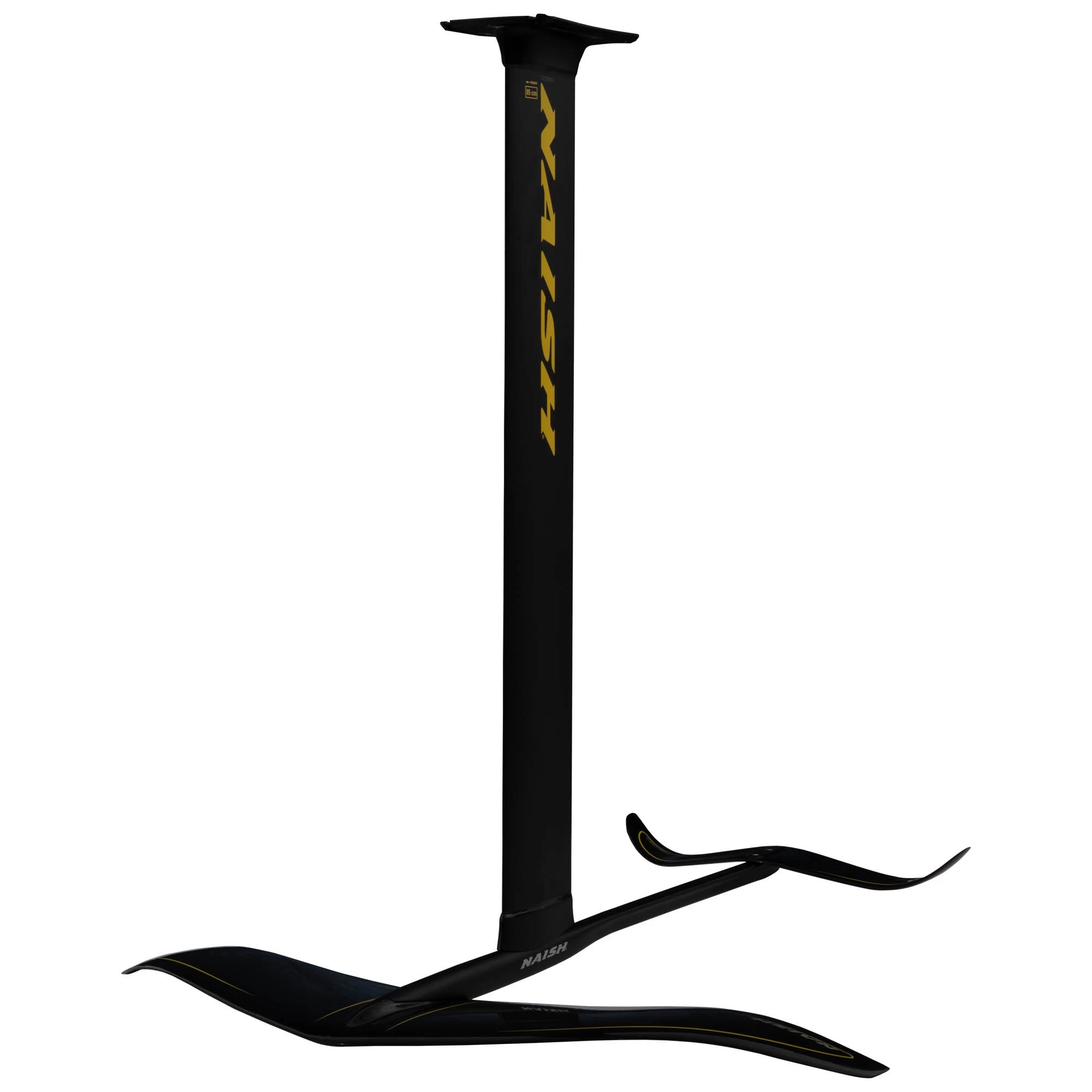

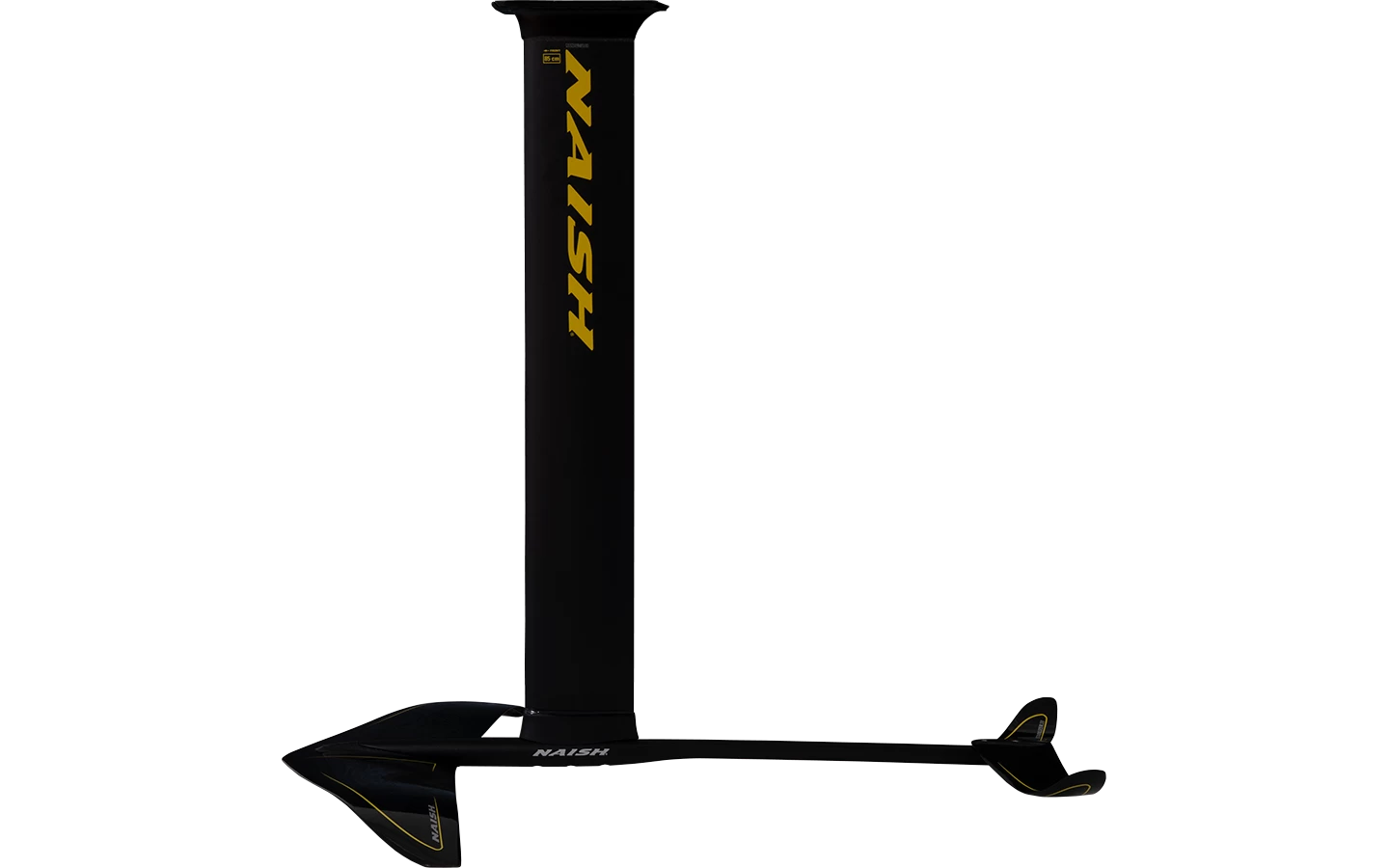

WIND/WING 1150 COMPLETE

Freeride Windsurf Foil



Suited for riders who prefer to ride with minimal sail size and put emphasis on early takeoff and maneuverability, or riders who prefer to sail with bigger sails and more focus on speed and upwind ability, the Naish Wind/Wing 1150 offers a magic balance like no other windsurf foil. The 1150 front wing combines early lift, great top speed, and smooth turning ability with easy control — making it the ideal choice for any recreational foil windsurfer who does not only want to sail up and downwind but also enjoys going fast easily on any course. The delta-wing design feels equally at home with a more relaxed small sail freeride setup as well as with bigger sails and a more outboard stance position while riding. The Wind/Wing 1150 is also a great choice as a high wind Wing-Surfer setup pushing this new sport to a new speed level. Paired with the Stabilizer 320, this is the most universal lightweight windsurf foil setup, suitable for any level of riding.

SET INCLUDES

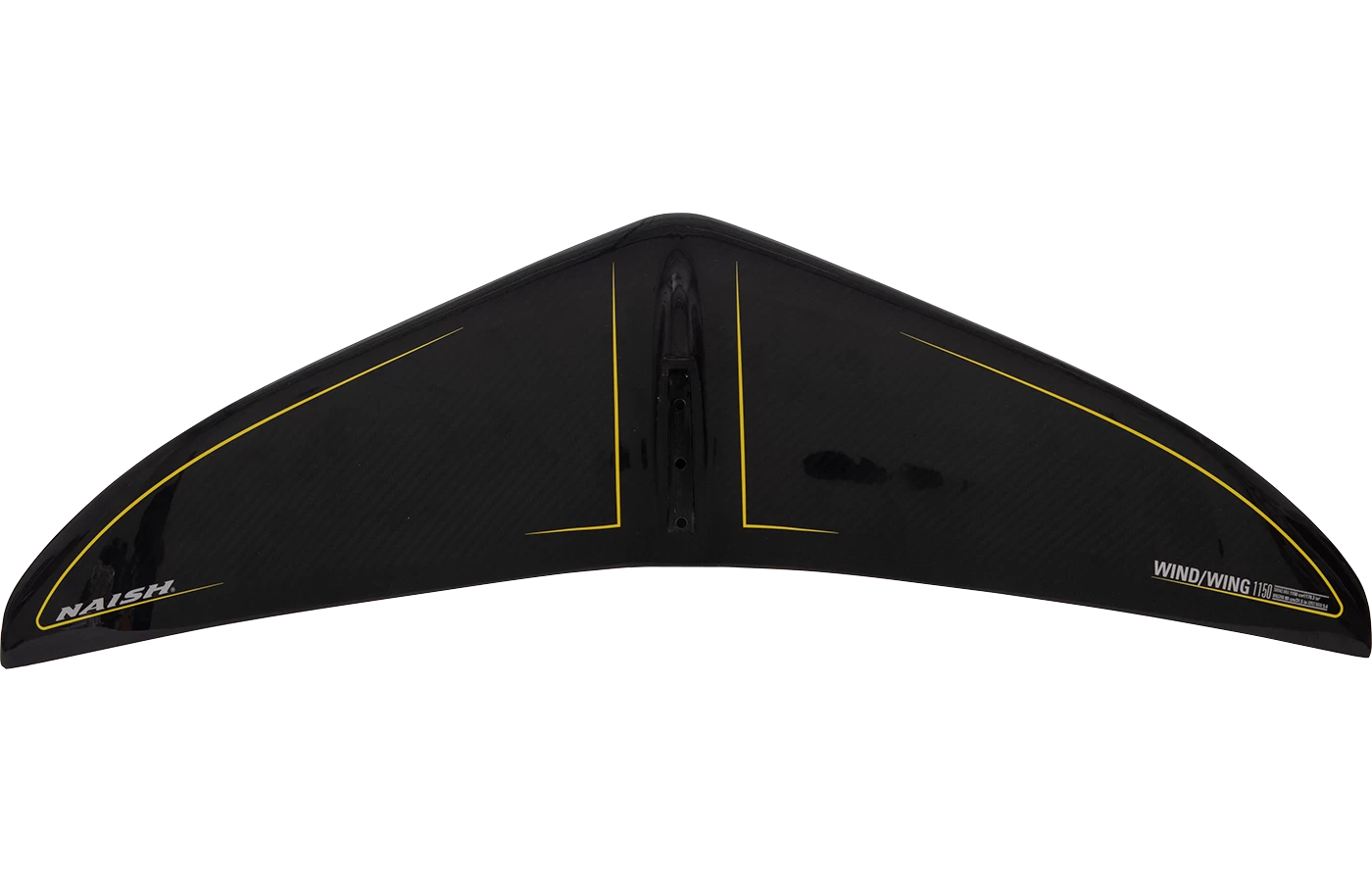

• Wind/Wing 1150 Front Wing
• Stabilizer Jet HA 320
• 85 cm Mast
• 85 cm Fuselage
• 5 x 20 mm Torx Head Stainless Steel Screws (Connects Wings to Fuselage) = Superior torque + corrosion resistant
• 3 x 25 mm Torx Head Stainless Steel Screws (Connects Mast to Fuselage) = Superior torque + corrosion resistant
• 4 x 25 mm Torx Head Stainless Steel Screws and 4 x M6 Tab (Connects Standard Plate to Board) = Superior torque + corrosion resistant
• EVA Wing Covers
• Carry Case

CONSTRUCTION FEATURES

• Naish Aluminum Masts are Available as Direct Connect as well as Deep Tuttle and Abracadabra Connection Systems
• Lightweight, Foam Filled Aircraft Grade, Triple Stringer Extruded Aluminum Mast with Bonded and Screwed Connections
• 100% Pre-preg 3K High Gloss Carbon Fiber Front Wing and Stabilizer
• CNC Precision Cut Lightweight Aluminum Fuselage with Corrosion Resistant Stainless Steel M6 Helicoils for the Front Wing and Stabilizer Connection
• Stainless Steel M6 Torx T30 Hardware for all Screwed Connections

The Wind/Wing 1150 is available as a complete set or a semi-complete set where you can choose your own mast.



Size	Front Wing Design	Aspect Ratio	Wingspan	Projected Surface Area
85 cm	Medium Lift/Low Drag Dihedral Foil	5.6	31.5″/80 cm	178.3 in²/1150 cm²

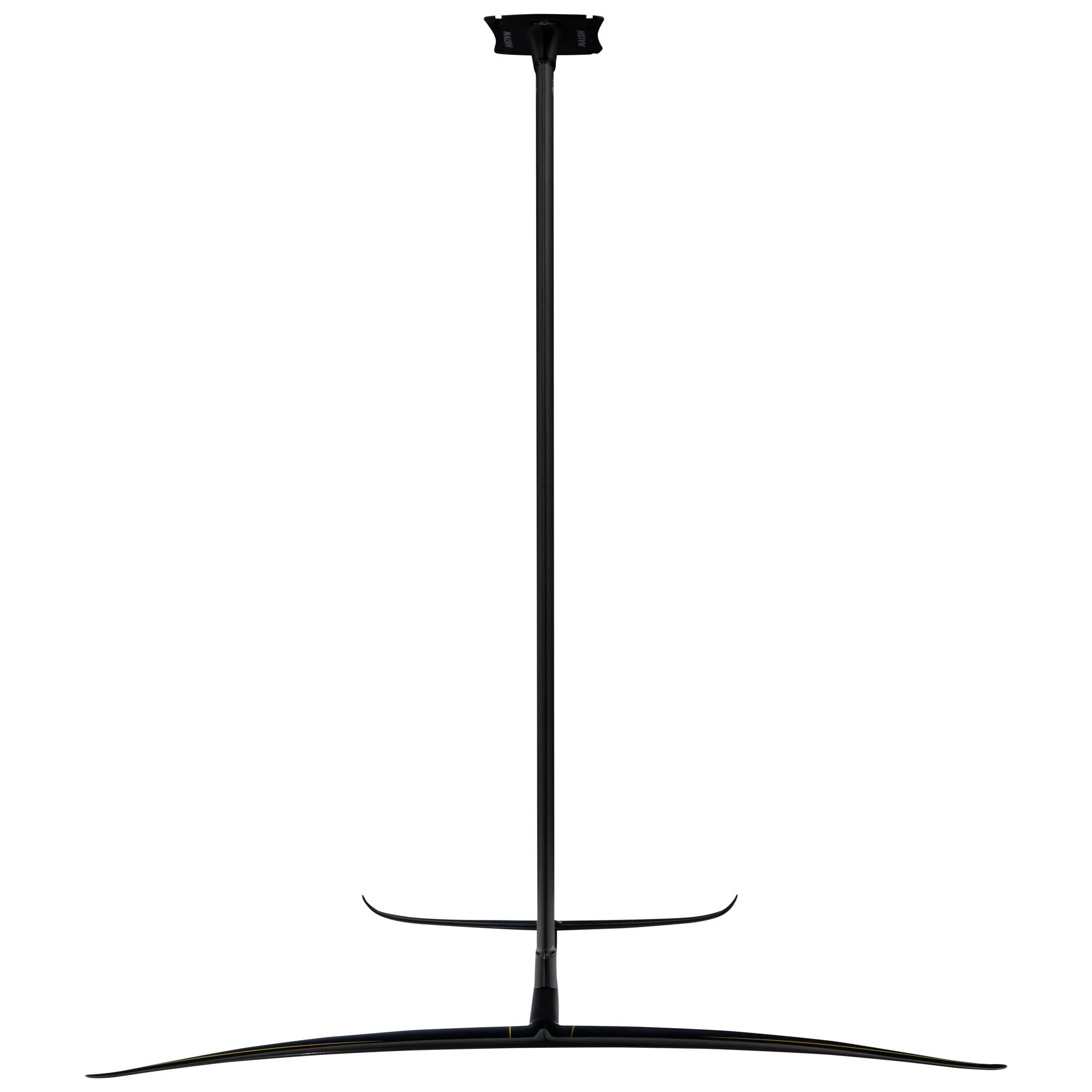

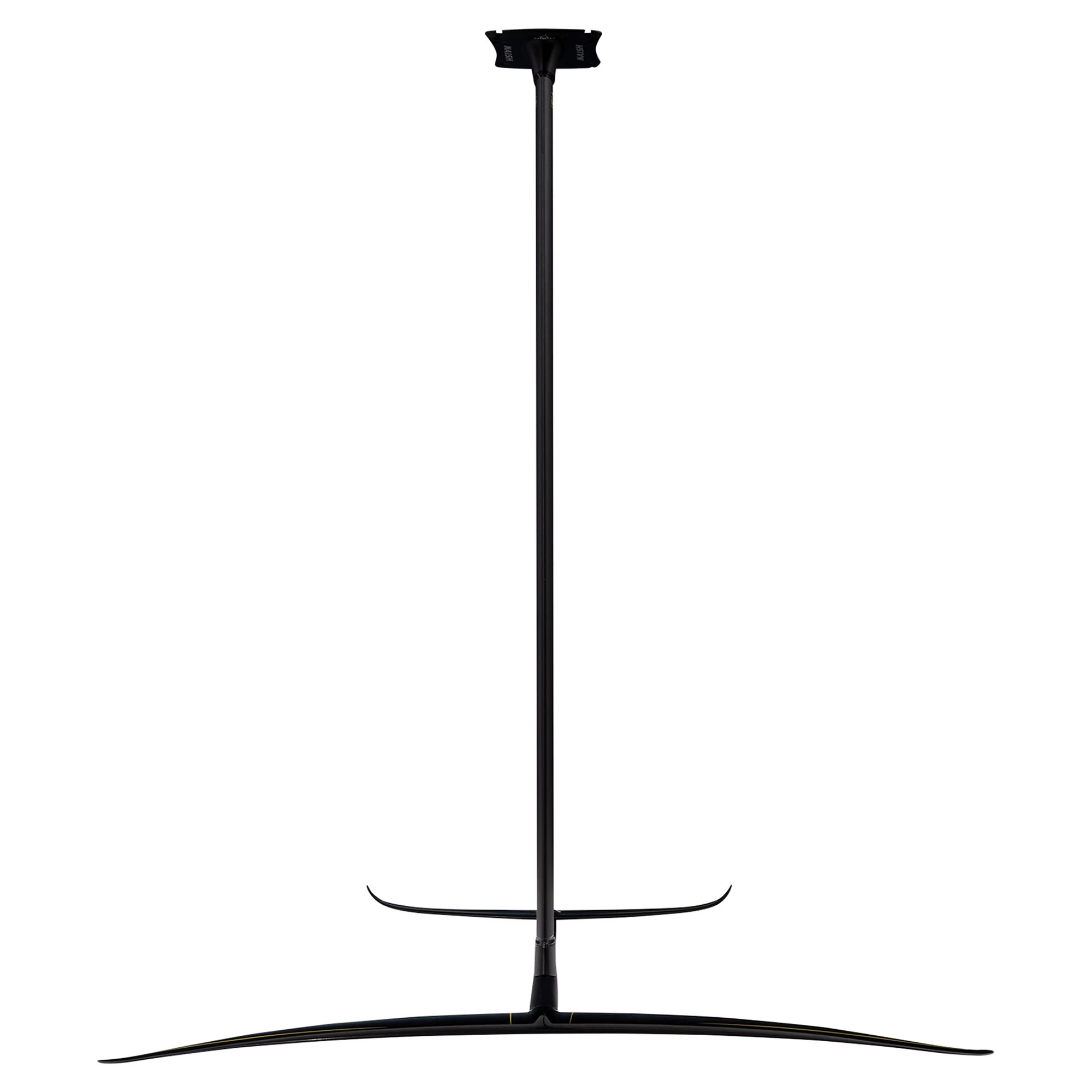

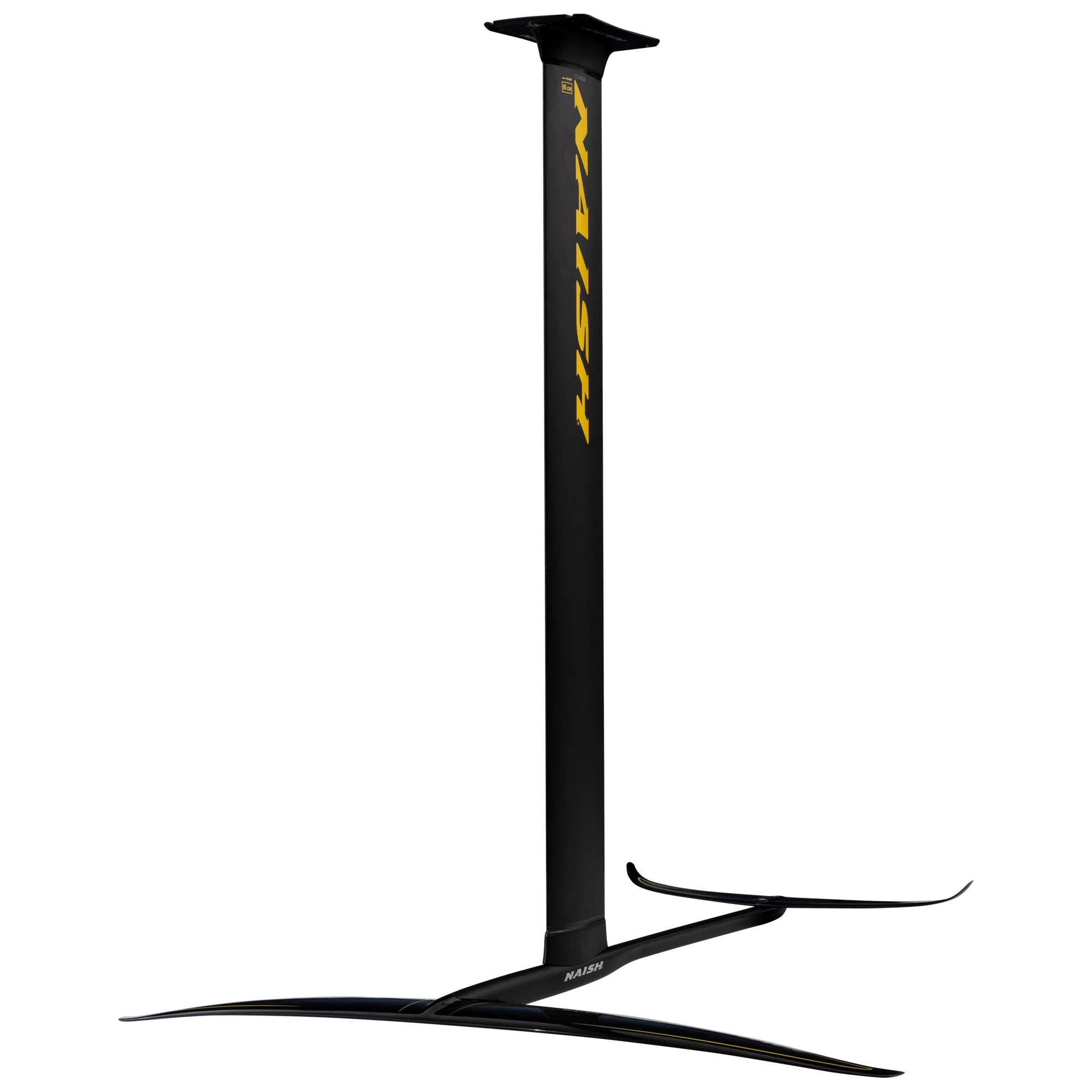

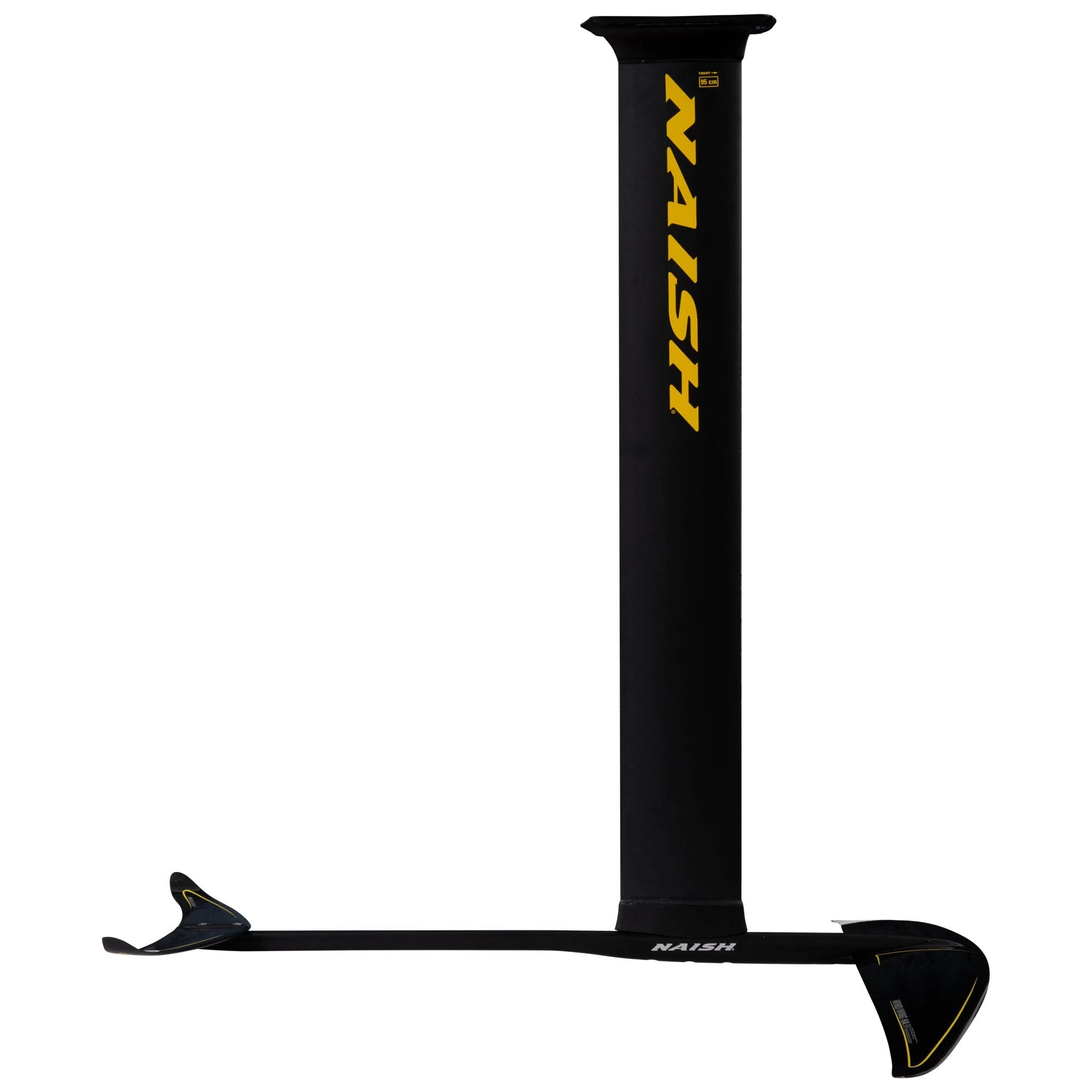

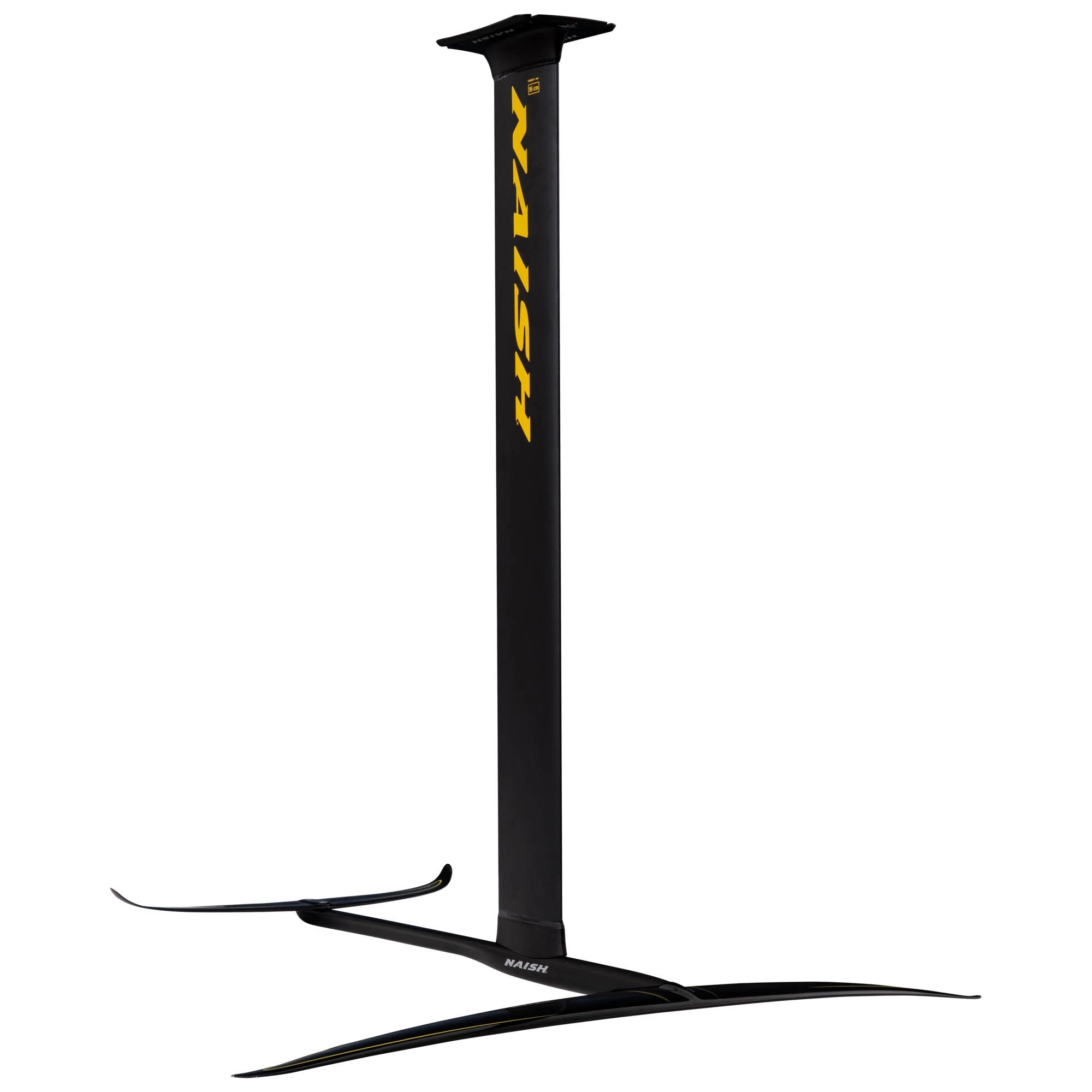

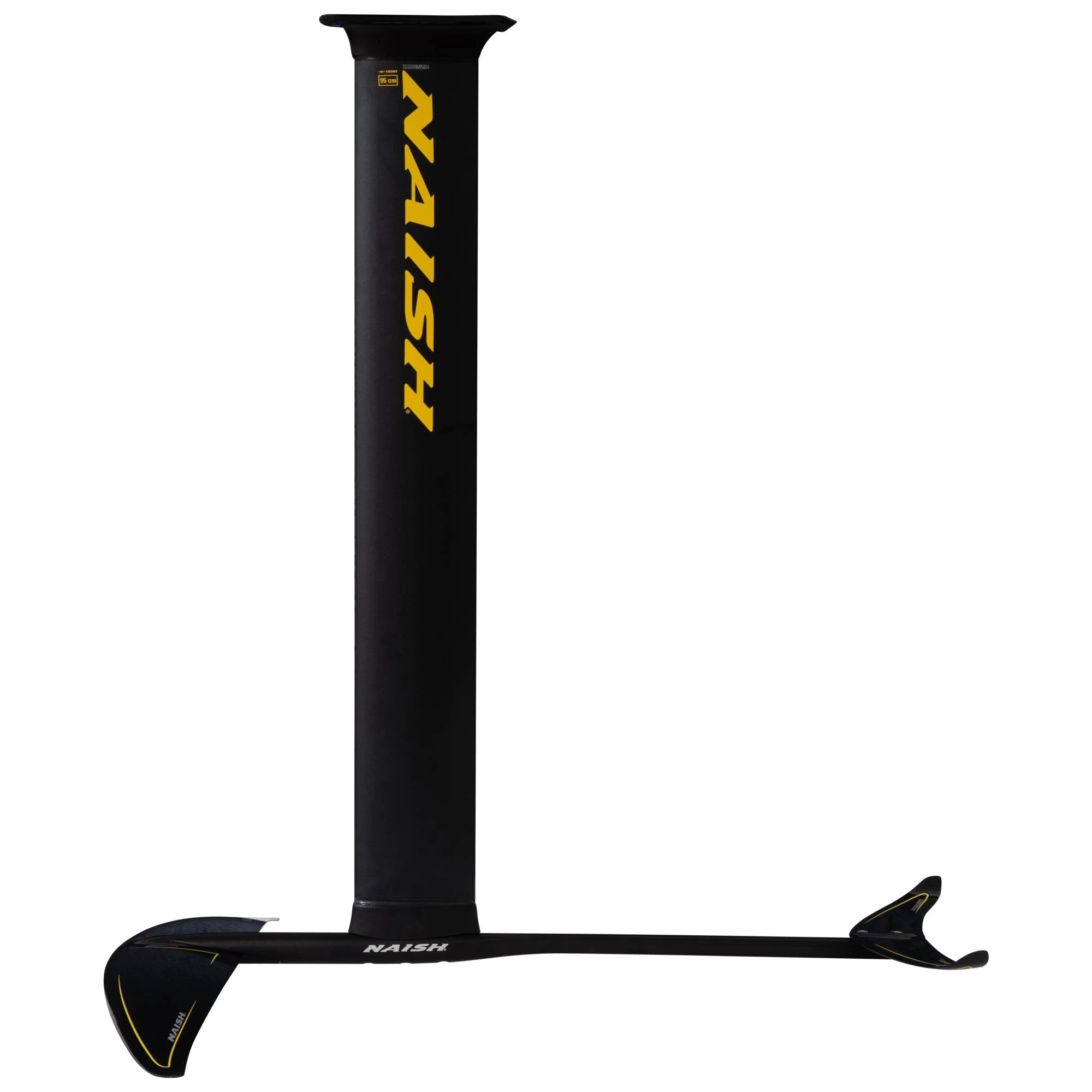

WIND/WING HA 914 COMPLETE

Speed Performance Wing-Surf & Freeride Windsurf Foil

With a unique outline and foil section compared to any other wing in the Naish range, the Wind/Wing HA 914 is fast and fluid. Its foil section is thinner than that on any other Naish wing, providing high-speed with fairly low lift for the size of its span. Requiring a relatively high take-off speed, the HA 914 is very stable once up to speed making it a fantastic wing-foil racing wing, windsurfing, or medium to large sized surf wing. Incredible upwind performance combined with an unsurpassed top speed makes the Wind/Wing HA 914 a fantastic powered-up wind foil option.



SET INCLUDES

• Wind/Wing HA 914 Front Wing
• Stabilizer Jet HA 280
• 85 cm Mast
• 95 cm Fuselage
• 5x 20 mm M6/4x 30 mm M6 + T Nuts
• EVA Wing Covers
• Carry Case

CONSTRUCTION FEATURES

• 100% Pre-preg 3K High Gloss Carbon Fiber Front Wing and Stabilizer
• CNC Precision Cut Lightweight Aluminum Fuselage with Corrosion Resistant Stainless Steel M6 Helicoils for the Front Wing and Stabilizer Connection
• Stainless Steel M6 Torx T30 Hardware for all Screwed Connections



Front Wing	Aspect Ratio	Wingspan	Projected Surface Area	Stabilizer	Fuselage
Wind/Wing HA 914	8.4	34.3″/87.5 cm	141.7 in²/914 cm²	Jet HA 280	95 cm
Wind/Wing HA 914 DT	8.4	34.3″/87.5 cm	141.7 in²/914 cm²	Jet HA 280	95 cm DT
